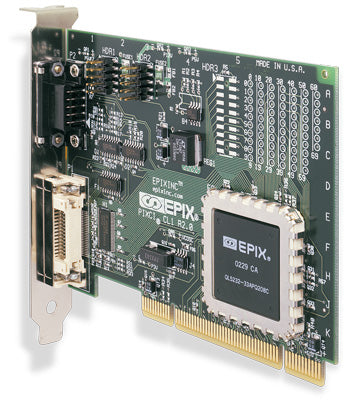

PIXCI® CL1

PIXCI® CL1

$795.00 USD
$795.00 USD
Sale Sold out

Base Camera Link for PCI

Features

  • PCI bus frame grabber
  • 132 megabytes per second burst DMA transfer rate
  • 100 megabytes per second sustained transfer rate
  • 32-bit memory addressing

Capture

  • Base Camera Link camera
  • Line scan or area scan cameras
  • Monochrome or color cameras
  • Individual lines or frames
  • Continuous video
  • Up to 4,096 pixels per line
  • Up to 4,096 lines per image (area scan)
  • Up to 65,534 lines per image (line scan)
  • Triggered image sequence

Trigger and I/O

  • Camera exposure and asynchronous reset control
  • Trigger and frame enable inputs
  • Strobe output
  • General purpose inputs and outputs
  • 26 pin MDR Camera Link connector
  • 9 pin Dsub for trigger and I/O

Specifications

  • 5 volts @ 530 mA
  • 32 bit / 33 MHz PCI bus master, or 64 bit / 66 MHz PCI bus master slot
  • 3.3 or 5volt PCI signaling
  • 12.5 cm long, 8.3 cm high, 4.91” long by 3.27” high
  • 77 grams, 2.7 ounces
  • 0 to 70 degrees Celsius operation
  • CE, FCC, ROHS compliant
  • Camera pixel clocks from 20 to 85 MHz
  • Made in U.S.A.

Software

  • XCAP-Lite image capture, display, and save program included with frame grabber purchase
  • XCAP-LTD captures video to computer memory and more..
  • XCAP-STD streams video to disk and performs image processing and more..
  • PIXCI Selection Guide  lists cameras supported with dedicated Capture & Adjust dialogs
  • XCAP supports all camera link cameras connected to PIXCI® frame grabbers
  • XCLIB programmer libraries for frame grabber and camera control
  • PXIPL image processing, measurement, and analysis libraries
  • Windows & Linux, 32 & 64-bit
  • TWAIN compatible
  • 3rd Party software solutions also available.

TTL MODULE

TTL ModuleThe optional TTL Module minimizes false triggers when using a TTL trigger with a cable longer than one foot. The TTL MODULE converts the TTL trigger into a differential signal for reliable triggering with up to 200 feet of cable. The TTL MODULE also can generate a TTL strobe from the attached PIXCI® board. Compatible with PIXCI® CL1, CL2, CL3SD, D2X, D3X, SI, and SI4.

View full details
Product Product subtotal Quantity Price Product subtotal
PIXCI® CL1
PIXCI® CL1
PIXCI® CL1
$795.00/ea		 $0.00
$795.00/ea $0.00

 Questions about compatibility?

Not sure whether this product is right for your camera? Send us your camera manufacturer and model, and we'll help you obtain the appropriate compatibility information before you order.
