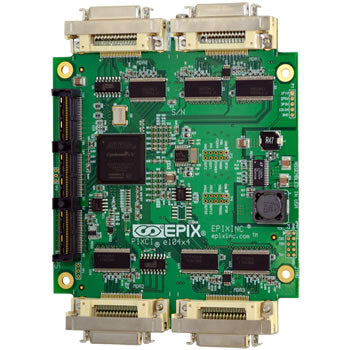

PIXCI® e104x4

PCIe/104 Frame Grabber For Embedded Camera Link Applications

Applications

• Airborne
• Automotive
• High Data Rate
• Industrial
• Mobile
• Multi-Camera
• Rugged
• Underwater

Frame Grabber Features

• PCIe/104 x4 Gen2 Camera Link Frame Grabber
• Captures from 1 or 2 Medium, Full, or 10-tap Camera Link Cameras
• Captures from up to 4 Base Camera Link Cameras
• Line Scan or Area Scan
• Camera Frame Rate Sequence Capture
• Triggered Image Sequence Capture
• Camera Integration & Async Reset Control
• DMA Image Data to Motherboard Memory
• Windows & Linux, 32 & 64–bit

Interface Features

• Type 1 bottom-stacking PCIe/104 x4 Gen 2.0 interface.
• 64-bit memory addressing.
• 20 gigabit per second burst transfer rate.
• 4.55 inch x 3.775 inch size (11.56 cm x 9.59 cm).
• PCI104e bus expands without a backplane or card cage.
• Rugged, reliable connectors.
• Four corner mounting holes: Resistant to shock and vibration.
• Industrial temperature range.

Software

• XCAP-Lite image capture, display, and save program included
• Capture video to computer memory with XCAP-LTD
• Stream video to disk with XCAP-STD
• XCLIB programmer libraries for frame grabber and camera control
• PXIPL image processing, measurement, and analysis libraries
• 3rd Party software available
• Windows & Linux, 32 & 64–bit
