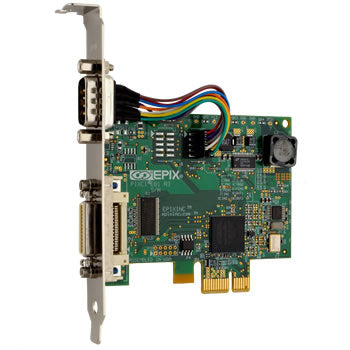

PIXCI® EB1-PoCL

PCI Express x1 Base Camera Link Frame Grabber with PoCL

Features

• PCIe x1 low-profile desktop frame grabber
• Operates in any PCI Express slot
• 2.5 gigabit per second burst DMA transfer rate
• 200 megabytes per second sustained transfer rate
• One 26-pin MDR Camera Link connector
• 64-bit memory addressing

Capture

• From a Base Camera Link camera
• From line scan or area scan cameras
• From monochrome or color cameras
• Individual lines or frames
• Continuous video
• Triggered image sequences

Trigger and I/O

• Camera exposure and asynchronous reset control
• Trigger and frame enable inputs
• Strobe output
• General purpose inputs and outputs

Options

• Standard or low-profile bracket available
• Optional standard height bracket with Dsub for trigger,etc.
• Camera power over Camera Link cable

Specifications

• 12 volts @ 90 mA, 3.3 volts @ 120 mA
• 8.38 cm long, 6.88 cm high, 3.30” long by 2.71” high
• 48 grams, 1.7 ounces
• 0 to 70 degrees Celsius operation
• CE, FCC, ROHS Compliant
• Accepts camera pixel clocks from 20 to 85 MHz
• Made in U.S.A.

Software

• XCAP-Lite image capture, display, and save program included with frame grabber purchase
• XCAP-LTD captures video to computer memory and more..
• XCAP-STD streams video to disk and performs image processing and more..
• PIXCI Selection Guide  lists cameras supported with dedicated Capture & Adjust dialogs
• XCAP supports all camera link cameras connected to PIXCI® frame grabbers
• XCLIB programmer libraries for frame grabber and camera control
• PXIPL image processing, measurement, and analysis libraries
• Windows & Linux, 32 & 64-bit
• TWAIN compatible
• 3rd Party software solutions also available.
