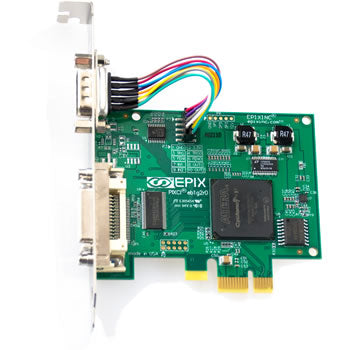

PIXCI® EB1G2

PIXCI® EB1G2

$645.00 USD
$645.00 USD
Sale Sold out

PCI Express 2.0 x1 Base Camera Link Frame Grabber

Features

  • PCIe x1 Gen 2 low-profile desktop frame grabber
  • Operates in any PCI Express slot
  • 5 gigabit per second burst transfer rate
  • 409 megabytes per second sustained transfer rate
  • One 26-pin MDR Camera Link connector
  • Image data DMA transferred to motherboard memory
  • 64-bit memory addressing

Capture

  • From a Base Camera Link camera
  • From line scan or area scan cameras
  • From monochrome or color cameras
  • Individual lines or frames
  • Continuous video
  • Triggered image sequences

Trigger and I/O

  • Camera exposure and asynchronous reset control
  • Trigger and frame enable inputs
  • Strobe output
  • General purpose inputs and outputs

Options

  • Standard or low-profile bracket available
  • Optional standard height bracket with Dsub for trigger,etc.

Specifications

  • 12 V @ 190 mA, 3.3 V @ 130 mA
  • Average power consumption: 2.709 Watts
  • 8.38 cm long, 6.88 cm high, 3.30” long by 2.71” high
  • 48 grams, 1.7 ounces
  • 0 to 70 degrees Celsius operation
  • CE, FCC, & ROHS Compliant
  • Accepts camera pixel clocks from 20 to 85 MHz

Software

  • XCAP-Lite image capture, display, and save program included with frame grabber purchase
  • XCAP-LTD captures video to computer memory and more..
  • XCAP-STD streams video to disk and performs image processing and more..
  • PIXCI Selection Guide  lists cameras supported with dedicated Capture & Adjust dialogs
  • XCAP supports all camera link cameras connected to PIXCI® frame grabbers
  • XCLIB programmer libraries for frame grabber and camera control
  • PXIPL image processing, measurement, and analysis libraries
  • Windows & Linux, 32 & 64-bit
  • TWAIN compatible
  • 3rd Party software solutions also available.

SPECIFICATIONS

SIGNAL INPUT & OUTPUT:
EIA RS-644 (LVDS) Drivers & Receivers
support pixel clock frequencies up to 85 MHz.
PERFORMANCE:
Supports the camera's maximum:
Horizontal Resolution
Vertical Resolution
Frame Rate
Bit Depth
CONNECTIONS:
One 26-pin 3M MDR Camera Link connector for Base.
9-pin connector for Trigger, Frame Enable, Strobe, and General Purpose I/O.
Camera Link cables available.
DATA TRANSFERS:
Supports cameras with data output rates up to 409 MBytes/second.
(Performance may vary depending on computer system capabilities.)
64-bit memory addressing
BUS REQUIREMENTS:
PCI Express x1 Gen 2 or better slot.
Operates in PCI Express x16, x8, x4, or x1 slot.
DIMENSIONS:
8.38 cm long by 6.88 cm high
(3.30" long x 2.71" high)
CERTIFICATIONS:
CE Compliant
ROHS Compliant
EPIX SOFTWARE Support:

Supported by XCAP-Lite (no charge with board purchase), XCAP-Ltd, XCAP-Std, XCLIB, and XCLIBIPL.
Compatible with 32-bit & 64-bit Windows 11, 10, 8, 7, Vista, XP, 2000, LINUX, and 32-bit DOS. Windows Media Foundation (DirectShow) and Video for Linux (V4L2) drivers are included with all versions of XCAP. TWAIN drivers available.

View full details
Variant Variant total Quantity Price Variant total
PIXCI® EB1G2
29 pin
29 pin
$645.00/ea		 $0.00
$645.00/ea $0.00
9 pin
9 pin
$645.00/ea		 $0.00
Sold out
$645.00/ea $0.00
View cart
0

Total items

$0.00

Product subtotal

Taxes, discounts and shipping calculated at checkout.
View cart

 Questions about compatibility?

Not sure whether this product is right for your camera? Send us your camera manufacturer and model, and we'll help you obtain the appropriate compatibility information before you order.
