PIXCI ® EB1miniGC

Smallest Camera Link Frame Grabber Series

Applications

• Airborne
• Automotive
• Drone
• Industrial
• Mobile
• Rugged
• Underwater

Frame Grabber

• Base Configuration Camera Link
• MDR or SDR connector options
• Line Scan or Area Scan Cameras
• Supports more than 1000 different camera models
• Camera frame rate sequence capture
• Triggered image sequence capture
• Camera Integration & Async Reset Control
• LVTTL Trigger In and Strobe Out
• Industrial Temp Versions Available

Interface

• PCI Express Mini Card
• Full and Half Length versions
• 64-bit memory addressing
• Burst transfer at 250 megabytes per second
• 200 megabyte per second sustained data transfer

Software

• XCAP-Lite image capture, display, and save program included
• Capture video to computer memory with XCAP-LTD
• Stream video to disk with XCAP-STD
• XCLIB programmer libraries for frame grabber and camera control
• PXIPL image processing, measurement, and analysis libraries
• 3rd Party software available
• Windows & Linux, 32 & 64–bit

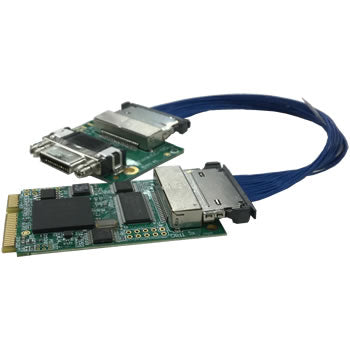

The PIXCI® EB1mini series of camera link frame grabbers use internal PCI Express Mini Card slots in small computer systems. Space constraints typically require routing of cables to a side of the case or to a nearby camera. Flexible cables are used to facilitate routing. The five versions of the PIXCI® EB1mini series provide multiple solutions for locating connectors.
