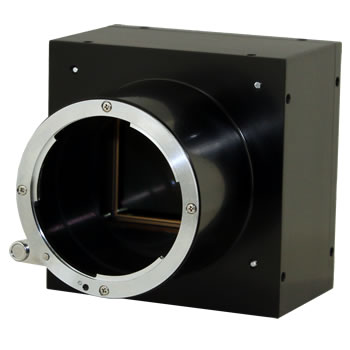

SILICON VIDEO® 20C-CL

20 Megapixel Camera Link Cameras

Sensor

• SV20C-CL with RGB bayer pattern color sensor
• SV20M-CL with monochrome sensor
• 5120 by 3840 pixels
• 12 bits per pixel
• 6.4 µm square pixels
• 32.77 by 24.58 mm sensor size
• Pipelined global shutter
• Up to 30 frames per second at maximum resolution
• Higher frame rates with fewer lines
• 66 dB dynamic range
• 8.3 Volts/Lux-sec sensitivity

Camera

• Trigger input, Strobe output
• 80-Bit camera link for 25 frames per second
• Base camera link for 8 frames per second
• Two MDR camera link connectors
• 76.2 x 76.2 x 89.3 mm (3 x 3 x 3.52 inch)
• 384 grams
• Optional infrared cut filter
• 12 VDC @ 500 mA
• F-Mount
• 0 to 50°C

Software

• Control for gain, exposure, area of interest,
  subsampling, left/right and top/bottom image flip
• Ready to run XCAP application software
• Image sequence capture and save
• Triggered image sequence capture
• Image processing, measurement, and analysis optional
• Control of all camera registers
• Programmer libraries optional
• Image processing and analysis libraries optional
• Windows & Linux, 32 & 64–bit

PIXCI® Frame Grabbers for 80-Bit Camera Link

• PIXCI® E4G2 PCIe x4 Gen 2 (Desktop)
• PIXCI® E8 PCIe x8 Gen 1.1 (Desktop)
• PIXCI® e104x4 Gen 2 PCIe 104 (Embedded)

PIXCI® Frame Grabbers for Base Camera Link

• PIXCI® EB1 PCIe x1 (Desktop)
• PIXCI® EB1mini miniPCIe (Embedded)
• PIXCI® ECB1-34 ExpressCard (Notebook)
