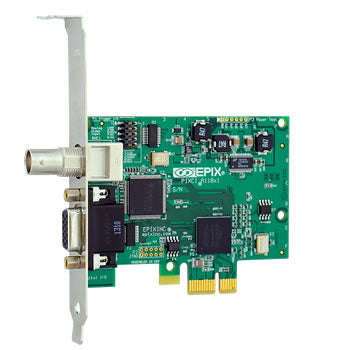

PIXCI® A110

Frame Grabber for High Resolution, High Quality, Analog Monochrome Video

Features

• PCIe x1 low profile analog frame grabber
• Plug into any PCI Express slot
• 2.5 gigabit per second DMA burst transfer rate
• 200 megabytes per second sustained transfer rate
• 64-bit memory addressing

Image Capture

• 10 bits per monochrome pixel
• Interlaced or progressive scan
• Video to disk or memory
• Programmable video formats
• Triggered image sequence capture
• Camera exposure and asynchronous reset control

Video Formats

• RS-170, CCIR, RS-330, RS-343, VGA, SVGA, XGA, WXGA
• SXGA, SXGA+, WXGA, WSGA+, UXGA
• 1920x1080p, 1920x1080i, 1280x720p, 720x480p, 720x576p
• Supports vertical sync frequencies greater than 40 Hz
• Pixel clocks from 12 to 165 MHz
• PLL locks pixel clock to sync

Connections

• BNC jack for monochrome analog video capture
• Trigger and frame enable inputs
• Strobe output
• Four general purpose inputs and four outputs on DB15

Specifications

• 12 volts @ 200mA, 3.3 volts @ 150 mA
• 8.38 cm long, 6.88 cm high, 3.450" long, 2.713" high
• 60 grams, 2.1 ounces
• 0 to 70 degrees Celsius operation
• CE, FCC, ROHS compliant
• Made in U.S.A.

Software

• XCAP-Lite image capture, display, and save program included with frame grabber purchase
• XCAP-LTD captures video to computer memory and more..
• XCAP-STD streams video to disk and performs image processing and more..
• PIXCI Selection Guide  lists cameras supported with dedicated Capture & Adjust dialogs
• XCAP supports all camera link cameras connected to PIXCI® frame grabbers
• XCLIB programmer libraries for frame grabber and camera control
• PXIPL image processing, measurement, and analysis libraries
• Windows & Linux, 32 & 64-bit
• TWAIN compatible
• 3rd Party software solutions also available.
