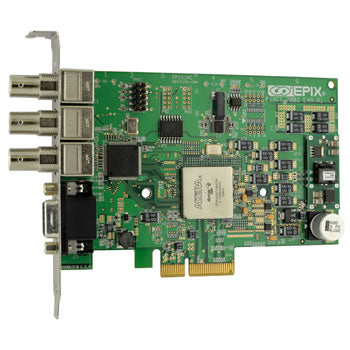

PIXCI® A310

PCIe x4 Frame Grabber for High Resolution, High Quality,  Analog Video

Features

• PCIe x4 analog frame grabber
• Use in PCI Express bus x16, x8, or x4 slot
• 10 gigabit per second DMA burst transfer rate
• 700 megabytes per second sustained transfer rate
• 64-bit memory addressing

Image Capture

• 10 bits per color and 30 bits per pixel
• Component RGB color or monochrome
• Interlaced or progressive scan
• Video to disk or memory
• Programmable video formats
• Triggered image sequence capture
• Camera exposure and asynchronous reset control

Video Formats

• RS-170, CCIR, RS-330, RS-343, VGA, SVGA, XGA, WXGA
• SXGA, SXGA+, WXGA, WSGA+, UXGA
• 1920x1080p, 1920x1080i, 1280x720p, 720x480p, 720x576p
• Pixel clocks from 12 MHz to 165 MHz
• PLL locks pixel clock to sync
• Supports vertical sync frequencies greater than 40 Hz

Connections

• BNC jacks for RGB input with sync on green
• Dsub 15 pin connector for alternate RGB input
• Trigger and frame enable inputs
• Strobe output
• Two general purpose inputs and two outputs

Specifications

• 12 volts @ 510mA, +3.3 volts @ 727 mA
• 13.1 cm long, 9.04 cm high, 5.15" long, 3.56" high
• 128 grams, 4.5 ounces
• 0 to 70 degrees Celsius operation
• CE, FCC, ROHS compliant
• Made in U.S.A.

Software

• XCAP-Lite image capture, display, and save program included with frame grabber purchase
• XCAP-LTD captures video to computer memory and more..
• XCAP-STD streams video to disk and performs image processing and more..
• PIXCI Selection Guide  lists cameras supported with dedicated Capture & Adjust dialogs
• XCAP supports all camera link cameras connected to PIXCI® frame grabbers
• XCLIB programmer libraries for frame grabber and camera control
• PXIPL image processing, measurement, and analysis libraries
• Windows & Linux, 32 & 64-bit
• TWAIN compatible
• 3rd Party software solutions also available.
