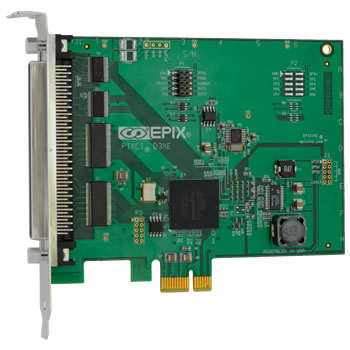

PIXCI® D3XE

LVDS (RS-644) PCI Express x1 Frame Grabber

CALL FOR PRICING

• PCIe x1 frame grabber for LVDS parallel output digital cameras.
• Captures at data rates up to 200 megabytes per second.
• Captures up to four 8 bit LVDS data channels, per PIXCI® D3XE.
• Captures up to 32 bit camera LVDS data, per PIXCI® D3XE.
• Capture 64 bit camera LVDS data, with dual PIXCI® D3XEs.
• Asynchronous image capture camera control.
• TTL trigger in.
• TTL strobe out.
• Camera exposure and reset control.
• Line scan or area scan cameras.
• Line drive and frame drive inputs.
• Two general purpose TTL inputs.
• Two general purpose TTL outputs.
• Single or dual board configurations.
• Video rate image sequence capture to computer memory.
• Windows & Linux, 32 & 64 bit software support.

A few of the supported cameras:

• Atmel-Grenoble TH78CA13
• Atmel-Grenoble TH78CA14
• Atmel-Grenoble TH78CA15
• DALSA DS-41-065K0955
• DALSA DS-41-300K0200
• DALSA CT-E4-4096W
• DALSA CT-P1-1024W
• DALSA CT-P1-2048W
• DALSA CT-P1-4096W
• DALSA CT-P4-6144W
• DALSA CT-P4-8192W
• DALSA TR31-01K25 10-Bit
• DALSA TR31-02K25 10-Bit
• Photo Research PR-920 DVP
• Pulnix TMC-9700
• Toshiba IK-TU51CU
• Toshiba IK-TU61
