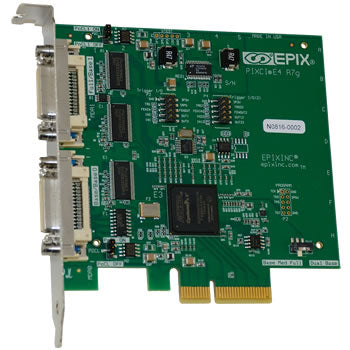

PIXCI® E4

PCI Express 2.0 x4 Camera Link Frame Grabber

Features

• PCI Express 2.0 x4 frame grabber
• Use in PCI Express Bus x16, x8, or x4 slot
• 20 gigabit per second DMA burst transfer rate
• 850 megabytes per second sustained transfer rate
• Power over Camera Link selectable
• Two 26-pin MDR Camera Link connectors
• 64-bit memory addressing

Image Capture

• One base, medium, full, or 80-bit camera
• Two base cameras
• Line scan or area scan cameras
• Monochrome or color cameras
• To disk or memory

Trigger, Strobe, and I/O Signals

• Camera exposure and asynchronous  reset control
• Trigger and frame enable inputs
• Strobe output
• General purpose inputs and outputs

Specifications

• 12 volts @ 120 mA, 3.3 volts @ 720 mA
• 13.1 cm long, 10.6 cm high, 5.15" long, 4.15" high
• 0 to 70 degrees Celsius operation
• 99 grams, 3.49 ounces
• CE, FCC, ROHS compliant
• Camera pixel clock frequencies from 20 to 85 MHz
• Made in U.S.A.

Software

• XCAP-Lite image capture, display, and save program included with frame grabber purchase
• XCAP-LTD captures video to computer memory and more..
• XCAP-STD streams video to disk and performs image processing and more..
• PIXCI Selection Guide  lists cameras supported with dedicated Capture & Adjust dialogs
• XCAP supports all camera link cameras connected to PIXCI® frame grabbers
• XCLIB programmer libraries for frame grabber and camera control
• PXIPL image processing, measurement, and analysis libraries
• Windows & Linux, 32 & 64-bit
• TWAIN compatible
• 3rd Party software solutions also available.
