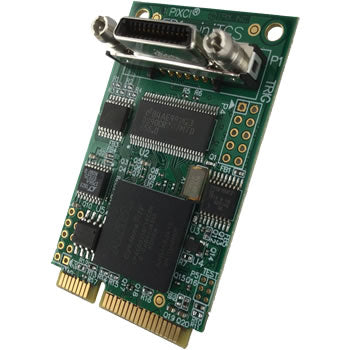

PIXCI® EB1miniTGS

Mini PCI Express x1 Base Camera Link Test Generator

Smallest base camera link frame generator plugs into a mini PCI express card slot. Generates base camera link digital video from test patterns, captured video, or live video with sustained rates of 200 megabytes per second. A very flexible cable allows for easy mounting of the MDR or SDR connector in a small embedded chassis. Includes software to generate, view, and display images and image sequences.

Features

• Plugs into full length mini PCIe slot
• 2.5 gigabit per second burst transfer rate
• 200 megabytes per second sustained transfer rate
• SDR camera link connector
• Available with No SDR connector for custom cables
• Image data DMA transferred from host memory
• 64 bit memory addressing for extended display

Generates

• Test images captured by a Base Camera Link frame grabber
• Monochrome or color linear ramp test data
• Monochrome static or moving test data
• Bayer color static test data
• Continuous video pixel clock
• 20 MHz to 85 MHz pixel clock
• 8/10/12 bit 1 tap and 2 tap test data
• 14/16 bit 1 tap test data
• 8 bit 3 tap test data
• Image sequences stored in host memory

Specifications

• 1.5 volts at 200 milliamps
• 10 pin header for trigger, strobe, frame in/out, two ttl in/two ttl out
• 3.3 volt LVTTL signal levels on header
• 2.0 inches (50.95mm) by 1.18 inches (30mm)
• 1.4 oz, 41 grams
• 3.3 volts at 150 milliamps
• CE, ROHS Compliant
• Generates a camera link pixel clock from 20 to 85 MHz
• Made in U.S.A.

Software

• XCAP-Lite test pattern control program included with test generator purchase
• Windows & Linux, 32 & 64-bit
