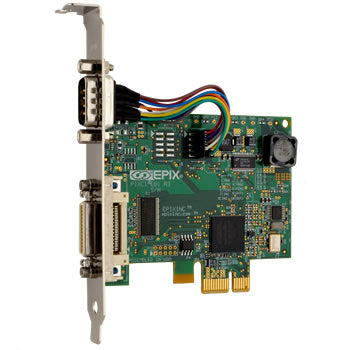

PIXCI® EB1TG

PCI Express x1 Base Camera Link Test Generator

Features

• PCIe x1 low-profile desktop test pattern generator
• Operates in any PCI Express slot
• One 26-pin MDR Camera Link connector

Test Patterns

• Generates Base Camera Link test pattern data output
• Generates monochrome or Bayer color data
• Generates area scan data

Options

• Standard or low-profile bracket available

Specifications

• 12 volts @ 90 mA, 3.3 volts @ 120 mA
• 8.38 cm long, 6.88 cm high, 3.30” long by 2.71” high
• 48 grams, 1.7 ounces
• 0 to 70 degrees Celsius operation
• CE, FCC, ROHS Compliant
• Generates a camera link pixel clock from 20 to 85 MHz
• Made in U.S.A.

Software

• XCAP-Lite test pattern control program included with test generator purchase
• Windows & Linux, 32 & 64-bit
