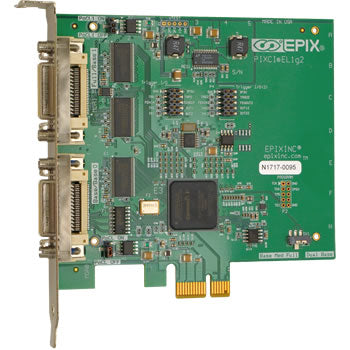

PIXCI® EL1

PCIe x1 Base, Medium, Full Camera Link Frame Grabber

Features

• PCIe x1 Gen 2 Frame Grabber
• Use in any PCI Express slot
• 5 gigabit per second burst DMA transfer rate
• 413 megabytes per second sustained transfer rate
• Two 26-pin MDR Camera Link connectors
• 64-bit memory addressing

Capture

• Base Camera Link camera
• Medium or Full Camera Link camera
• Switchable to Dual Base Camera Link
• Data rates up to 409 megabytes per second
• Line scan or area scan cameras
• Monochrome or color cameras
• Individual lines or frames
• Continuous video
• Triggered image sequence

Trigger and I/O

• Camera exposure and asynchronous reset control
• Trigger and frame enable inputs
• Strobe output
• General purpose inputs and outputs

Specifications

• 3.3 volts @ 310 mA
• 12 volts @ 200 mA
• Average power: 3.423 W
• 13.13 cm long, 10.55 cm high, 5.17" long, 4.153" high
• 98 grams, 3.4 ounces
• 0 to 70 degrees Celsius operation
• CE, FCC, and ROHS compliant
• Camera pixel clocks from 20 to 85 MHz
• Made in U.S.A.

Software

• XCAP-Lite image capture, display, and save program included with frame grabber purchase
• XCAP-LTD captures video to computer memory and more..
• XCAP-STD streams video to disk and performs image processing and more..
• PIXCI Selection Guide  lists cameras supported with dedicated Capture & Adjust dialogs
• XCAP supports all camera link cameras connected to PIXCI® frame grabbers
• XCLIB programmer libraries for frame grabber and camera control
• PXIPL image processing, measurement, and analysis libraries
• Windows & Linux, 32 & 64-bit
• TWAIN compatible
• 3rd Party software solutions also available.
