PIXCI® mf2280

Smallest Full Camera Link Frame Grabber

Applications

• Airborne
• Automotive
• Drone
• Industrial
• Mobile
• Rugged
• Underwater

Frame Grabber

• MDR or SDR connectors
• Base Camera Link
• Medium or Full Camera Link
• Data rates up to 1370 megabytes per second
• Line Scan or Area Scan Cameras
• Supports more than 1000 different camera models
• Camera frame rate sequence capture
• Triggered image sequence capture
• Camera Integration & Async Reset Control
• LVTTL Trigger In and Strobe Out

Interface

• PCIe x4 M.2 M 2280 slot
• 64-bit memory addressing
• 1370 megabyte per second sustained data transfer

Software

• XCAP-Lite image capture, display, and save program included
• Capture video to computer memory with XCAP-LTD
• Stream video to disk with XCAP-STD
• XCLIB programmer libraries for frame grabber and camera control
• PXIPL image processing, measurement, and analysis libraries
• 3rd Party software available
• Windows & Linux, 32 & 64–bit

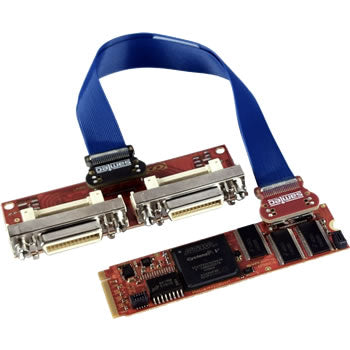

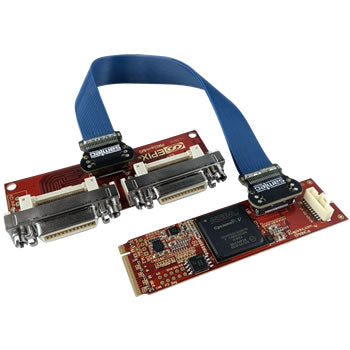

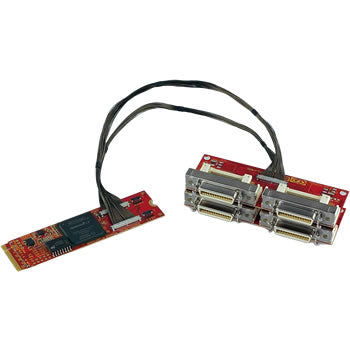

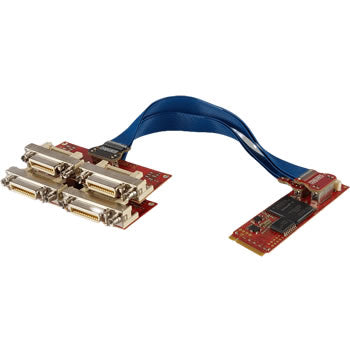

The PIXCI® mf2280 camera link frame grabber uses internal M.2M 2280 slots in small computer systems. Space constraints typically require routing of cables to a side of the case or to a nearby camera. Flexible cables are used to facilitate routin
