PIXCI® miniH2B-L

Embedded Dual Base Camera Link Frame Grabber

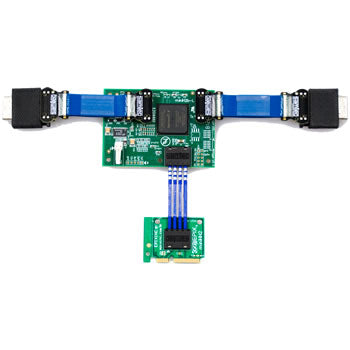

Smallest embedded dual base camera link frame grabber with connectors at the end of flat cables for flexible connector mounting in a chassis. Plugs into a half-length mini PCI express card slot via a flat Samtec cable. PIXCI® miniH2B-L captures digital video from any two base camera link cameras and burst transfers images to the mini PCIe bus at 500 megabytes per second with sustained rates of 409 megabytes per second. Includes software to capture, view, and store images.

Features

• Plugs into any mini PCIe slot
• 5 gigabit per second burst transfer rate
• 409 megabytes per second sustained transfer rate
• Two 26 pin MDR or SDR camera link connectors
• Image data DMA transferred to host memory
• 64 bit memory addressing

Capture

• From two base camera link cameras
• From line scan or area scan cameras
• From monochrome or color cameras
• Individual lines or frames
• Continuous video
• Triggered image sequences

Trigger and I/O (for each camera)

• Camera exposure and asynchronous reset control
• Trigger input and strobe output
• Frame enable input and frame output
• Two general purpose inputs and two outputs

Options

• PoCL camera power

Software

• XCAP-Lite image capture, display, and save program included
• XCAP-LTD captures video sequences to host memory
• XCAP-STD streams video to host disk drives
• XCLIB programmer libraries for custom capture and control
• PXIPL image processing, measurement, and analysis libraries
• 3rd Party software available
• Windows & Linux, 32 & 64–bit

The PIXCI® miniH2B-L camera link frame grabber uses internal PCI Express Mini Card slots in small computer systems. Space constraints typically require routing of cables to a side of the case or to a nearby camera. Flexible cables are used to facilitate routing.
