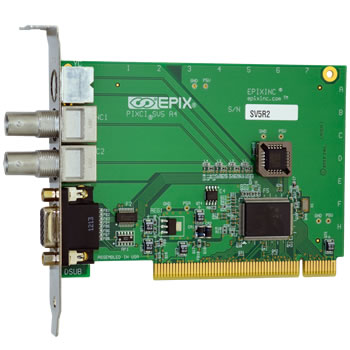

PIXCI® SV5

Composite Video PCI Bus Frame Grabber

Features

• PCI analog frame grabber
• Programmable gain, hue, brightness, saturation, and contrast
• DMA burst transfer image data at over 100MB/s
• Live video display using video display adapter
• 32-bit memory addressing
• Square pixel and CCIR601 resolution for NTSC and PAL
• Programmable horizontal and vertical scaling
• Programmable cropping
• Double frequency oversampling A-D converters

Image Capture

• No compression
• Color or monochrome
• Chroma Comb Filtering
• Triggered image sequence capture
• Single image or stream images to memory
• From cameras, camcorders, VCRs, and ultrasound
• From one of three multiplexed video inputs
• Resolution:
  • 752x480: S-Video, NTSC, RS-170
  • 922x580: CCIR
  • 768x580: S-Video, PAL
• Pixel Depth 8 bit
• Formats YUYV, YVYU, UYVY, VYUY, RGB, RGB+Pad, BGR, BGR+Pad
• Rate:
  • 30i frames/s or 60 fields/s for S-Video, NTSC, RS-170
  • 25i frames/s or 50 fields/s for S-Video, PAL, CCIR

Connections

• Two BNC jacks for composite video
• One DIN receptacle for S-Video
• DB-15 socket for general purpose inputs and outputs:
  • Four TTL trigger inputs
  • Four TTL control outputs

Specifications

• Requires 32 bit, 33 MHz PCI slot
• +5 V @ 550 mA
• 12.19 cm long, 8.83 cm high, 4.80" long, 3.475" high
• 103 grams, 3.6 ounces
• 0 to 70 degrees Celsius operation
• CE, FCC, ROHS compliant
• Made in U.S.A.

Software

• XCAP-Lite image capture, display, and save program included with frame grabber purchase
• XCAP-LTD captures video to computer memory and more..
• XCAP-STD streams video to disk and performs image processing and more..
• PIXCI Selection Guide  lists cameras supported with dedicated Capture & Adjust dialogs
• XCAP supports all camera link cameras connected to PIXCI® frame grabbers
• XCLIB programmer libraries for frame grabber and camera control
• PXIPL image processing, measurement, and analysis libraries
• Windows & Linux, 32 & 64-bit
• TWAIN compatible
• 3rd Party software solutions also available.
