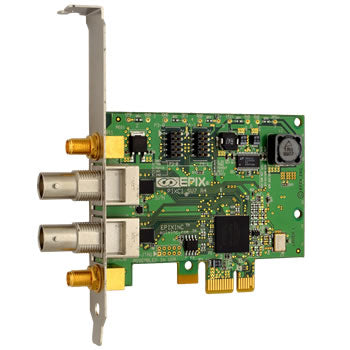

PIXCI® SV7

Dual Composite Video PCI Express Bus Frame Grabber

Features

• PCIe x1 low profile analog frame grabber
• Standard or low-profile bracket
• Use in any PCI Express slot
• 2.5 gigabit per second DMA burst transfer rate
• 200 megabytes per second sustained transfer rate
• Programmable gain, hue, brightness, saturation, and contrast
• 64-bit memory addressing

Image Capture

• Capture from two non-synced cameras simultaneously
• NTSC, RS-170 @ 720 × 480
• PAL, CCIR @ @ 720 × 576
• 10 bits per pixel
• Video to disk or memory
• Triggered image sequence capture

Connections

• Two BNC jacks for composite video input
• SMA connector for trigger in
• SMA connector for strobe out
• Two 10-pin Headers for trigger, strobe, general purpose I/O

Specifications

• 12 volts @ 91.3 mA, +3.3 volts @ 356 mA
• 8.67 cm long, 6.89 cm high, 3.42" long,  2.71 " high
• 84 grams, 2.9 ounces
• 0 to 70 degrees Celsius operation
• CE, FCC, ROHS compliant
• Made in U.S.A.

Software

• XCAP-Lite image capture, display, and save program included with frame grabber purchase
• XCAP-LTD captures video to computer memory and more..
• XCAP-STD streams video to disk and performs image processing and more..
• PIXCI Selection Guide  lists cameras supported with dedicated Capture & Adjust dialogs
• XCAP supports all camera link cameras connected to PIXCI® frame grabbers
• XCLIB programmer libraries for frame grabber and camera control
• PXIPL image processing, measurement, and analysis libraries
• Windows & Linux, 32 & 64-bit
• TWAIN compatible
• 3rd Party software solutions also available.
