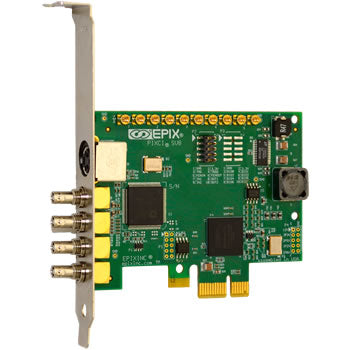

PIXCI® SV8

Frame grabber for color and monochrome analog video: S-Video, NTSC, PAL, RS-170, CCIR

Applications

• Multiple Source Capture
• Motion Analysis
• Microscopy
• Medical Imaging
• Robotics
• Laser Beam Analysis
• Multimedia

Features

• Install in any PCI Express slot (x1, x4, x8, x16).
• Four HD-BNC multiplexed inputs and one S-Video input.
• Uncompressed and lossless image capture.
• 8 or 10 bits per color value or pixel intensity.
• Enable or disable automatic gain control.
• Controls for gain, hue, brightness, saturation, sharpness, and contrast.
• 64-bit addressing for extended capture to computer memory.
• Stream video to disk for days.
• Live display through host computer’s graphics card.
• Available with standard or low profile bracket.
• RoHS compliant.
• Windows & Linux, 32 & 64–bit.

NTSC, RS-170, S-Video

• Image capture at 720 by 480 pixels or smaller area of interest.
• Capture at 30 interlaced frames or 60 discrete fields per second.

PAL, CCIR, S-Video

• Image capture at 768 by 576 pixels or smaller area of interest.
• Capture at 25 interlaced frames or 50 discrete fields per second.
