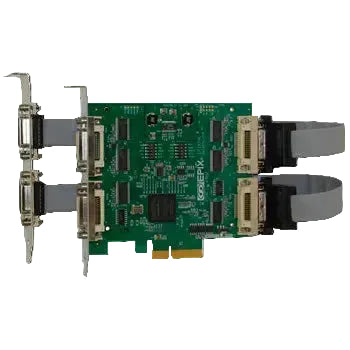

PIXCI E4G2

PCI Express 2.0 x4 Camera Link Frame Grabber

Features

• PCI Express 2.0 x4 frame grabber
• Use in PCI Express Bus x16, x8, or x4 slot
• 20 gigabit per second DMA burst transfer rate
• 1400 megabytes per second sustained transfer rate
• Two or four 26-pin MDR Camera Link connectors
• 64-bit memory addressing

Image Capture

• Four base; two medium, full, or 80-bit cameras
• Monochrome or color cameras
• Individual lines or frames
• Continuous video
• Triggered sequence
• To disk or memory

Trigger, Strobe and I/O Signals

• Camera exposure and asynchronous reset control
• Trigger and frame enable inputs
• Strobe output
• General purpose inputs and outputs

Specifications

• 12 volts @ 250 mA, 3.3 volts @ 470 mA
• 11.46 cm long, 9.86 cm high, 4.51" long, 3.88" high
• 101 grams, 3.56 ounces
• 0 to 70 degrees centigrade operation
• CE, FCC, ROHS Compliant
• Camera pixel clock frequencies from 20 to 85 MHz
• Made in U.S.A.
