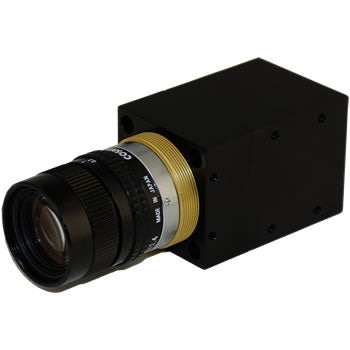

SILICON VIDEO® 1820-CL

18 Megapixel Color Camera

Image Sensor

• 18 megapixel RGB Bayer color sensor
• 4912 horizontal by 3684 vertical pixels
• 8, 10, or 12 bits per pixel
• 1.25µm by 1.25µm pitch, back side illumination
• 1/2.3 inch image format
• 65.8dB dynamic range
• 0.62 Volts/Lux-sec @ 545nm responsivity
• Uncompressed image output
• 24 fps with Full Camera Link
• 8.5 fps with Base Camera Link
• Programmable: gain, area of interest, h and v blanking, frame size/rate, exposure, left/right image flip, top/bottom image flip
• Black level calibration
• Asynchronous trigger input
• Strobe output

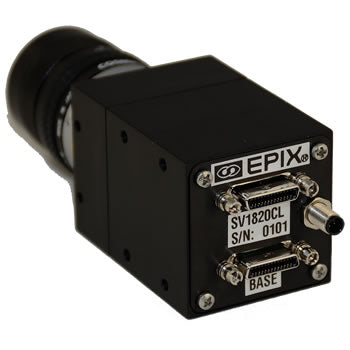

Camera Case

• 53.75 mm, 2.12 inches long
• 36.75 mm, 1.44 inches square
• 117 grams, 4.1 ounces
• Infrared cut filter
• Two 26 pin SDR connectors
• M5 power, trigger, strobe connector
• C-mount lens with adjustable back focus
• PoCL (Power over Camera Link)
• 0°C to +50°C operation
• RoHS compliant

Frame Grabber Interfaces

• PIXCI® EB1
• PIXCI® EB1mini series
• PIXCI® E4
• PIXCI® E4G2
• PIXCI® E8
• PIXCI® e104x4

Software

• Image sequence capture and save
• Triggered image sequence capture
• Image processing, measurement, and analysis optional
• Control of all camera registers
• Automatic white balance
• Controls for Red, Green, and Blue gain
• Color balance controls
• Programmer libraries for camera control
• Image processing and analysis libraries
• Ready to run menu driven software
• Windows & Linux, 32 & 64–bit

Options

• ½” C-Mount lens, image processing, video-to-disk, and image analysis software
• Power Supply (order code PWR-SV1820CL), not needed if using PoCL
• Complete imaging systems with cameras, frame grabbers, high performance computers, and disk arrays
