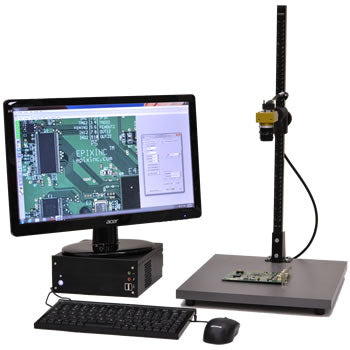

Visual Inspection System from Epix

View, Capture, Save from a 5 Megapixel Camera

CALL FOR QUOTE

Suitable For:

• PCB (Printed Circuit Board) Inspection
• Biomedical Imaging
• Quality Assurance
• Defect Analysis
• Solder Joints
• Component Alignment
• Surface Analysis

Visual Inspection System Includes:

• SILICON VIDEO® 5C10 5-Megapixel (2594x1944) camera system
• 25mm f/1.4 C-mount Lens
• XCAP-Lite Imaging Application
• 1GHz or better Dual Core CPU
• 4 GB RAM
• 120 GB Solid State Drive
• Mini-ITX Computer Case
• Mini-Keyboard & Microsoft Optical Mouse
• 21.5" 1920 x 1080 LED Backlight LCD Monitor
• Inspection Stand
• Windows 10 Professional

Complete Price: $2365.00

Options:

• Install Linux instead of Windows 10 $ -150.00

Notes:

• Mini-ITX Case Dimensions: 196(w) x 219(d) x 83(h) mm
• 2 DIMM slots (supports 8GB Memory Max.)
• Motherboard features:
• 10/100/1000Mb Ethernet
• 6 x USB 2.0 ports on rear
• 2 x USB 2.0 ports up front

Pricing includes integration & system test at EPIX, Inc. Prices are in US Dollars. Prices and specifications are subject to change without notice. All prices F.O.B. Buffalo Grove, Illinois. All components are covered under their respective manufacturer’s warranty.
